Module 5 — Operator Learning with DeepONet#
DesignSafe AI Training
Cantilever DeepONet example after Somdatta Goswami (Johns Hopkins).
A PINN solves one load case and only one#
Module 4’s PINN solved the beam from the equation alone, with no labelled data. Then we noticed the catch: it solved one load case. Change the load and every weight is wrong. Minutes of optimisation per load, when a design study needs hundreds.
Look at the pattern across the session:
Module |
Learns |
Maps |
New query costs |
|---|---|---|---|
1 Regression |
3 coefficients |
\(\mathbb{R}^3 \to \mathbb{R}\) |
instant |
2 MLP |
a nonlinear surrogate |
\(\mathbb{R}^3 \to \mathbb{R}\) |
instant |
4 PINN |
one solution field |
\(x \mapsto w(x)\) |
retrain (minutes) |
5 DeepONet |
the solution operator |
\(q(\cdot) \mapsto w(\cdot)\) |
instant |
The last row is the one we build now: a single trained network that takes a whole load function as input and returns the whole deflection field, for any load in the family — without retraining.
1000 GRF load cases on a 2 m x 0.2 m cantilever#
A 2 m x 0.2 m linear-elastic cantilever under a displacement-controlled boundary condition. The applied displacement profile is drawn from a Gaussian random field, so no two load cases look alike. For each one, a finite element solve gives the full 2D displacement field.
We have 1000 such (load, field) pairs. We want the map between them.
| 5 | Zero-shot prediction, and the limits |
Setup#
%pip install torch scipy matplotlib numpy --quiet
/private/tmp/claude-501/-Users-krishna-dev-DesignSafe-Training/a3c591bf-7af0-4642-a72e-3ed72e972147/scratchpad/venv/bin/python: No module named pip
Note: you may need to restart the kernel to use updated packages.
%matplotlib inline
import time
from pathlib import Path
import numpy as np
import matplotlib.pyplot as plt
import torch
import torch.nn as nn
from scipy.io import loadmat
RNG = 42
torch.manual_seed(RNG)
np.random.seed(RNG)
plt.rcParams.update({"figure.figsize": (11, 4), "font.size": 11})
MAT_NAME = "cantilever_beam_deflection.mat"
def find_mat():
"""The 20 MB dataset: Community Data, then local, then GitHub."""
here = Path.cwd()
for c in [Path("/home/jupyter/CommunityData/Training/2026-SPARC/Day3/3b-SciML") / MAT_NAME,
here / MAT_NAME,
here / "05-operator-learning" / MAT_NAME,
here.parent / "training-deeponet" / MAT_NAME]:
if c.exists():
print(f"using {c}")
return str(c)
import urllib.request
print("downloading 20 MB from GitHub (one time)...")
urllib.request.urlretrieve("https://raw.githubusercontent.com/DesignSafe-Training/deeponet/refs/heads/main/cantilever_beam_deflection.mat", MAT_NAME)
return MAT_NAME
print("torch", torch.__version__)
torch 2.13.0
100 input sensors in, a 1314-node field out#
raw = loadmat(find_mat())
u_all = raw["app_disp"] # (1000, 100) input functions
xy = np.stack([raw["coord_x"].ravel(), raw["coord_y"].ravel()], axis=1) # (1314, 2)
sx_all = raw["disp_x"] # (1000, 1314)
sy_all = raw["disp_y"]
sensor_loc = raw["sensor_loc_disp"].ravel() # (100,)
N_SAMPLES, N_SENSORS = u_all.shape
N_NODES = xy.shape[0]
print(f" {N_SAMPLES} load cases")
print(f" input function sampled at {N_SENSORS} sensors, x in "
f"[{sensor_loc.min():.2f}, {sensor_loc.max():.2f}] m")
print(f" output field on {N_NODES} FE nodes, "
f"x in [{xy[:,0].min():.2f}, {xy[:,0].max():.2f}] m, "
f"y in [{xy[:,1].min():.2f}, {xy[:,1].max():.2f}] m")
print(f" output has 2 components (u_x, u_y)")
print(f"\n that is {N_SAMPLES * N_NODES * 2:,} field values in total")
using /Users/krishna/dev/DesignSafe-Training/training-ai/05-operator-learning/cantilever_beam_deflection.mat
1000 load cases
input function sampled at 100 sensors, x in [0.00, 2.00] m
output field on 1314 FE nodes, x in [0.00, 2.00] m, y in [0.00, 0.20] m
output has 2 components (u_x, u_y)
that is 2,628,000 field values in total

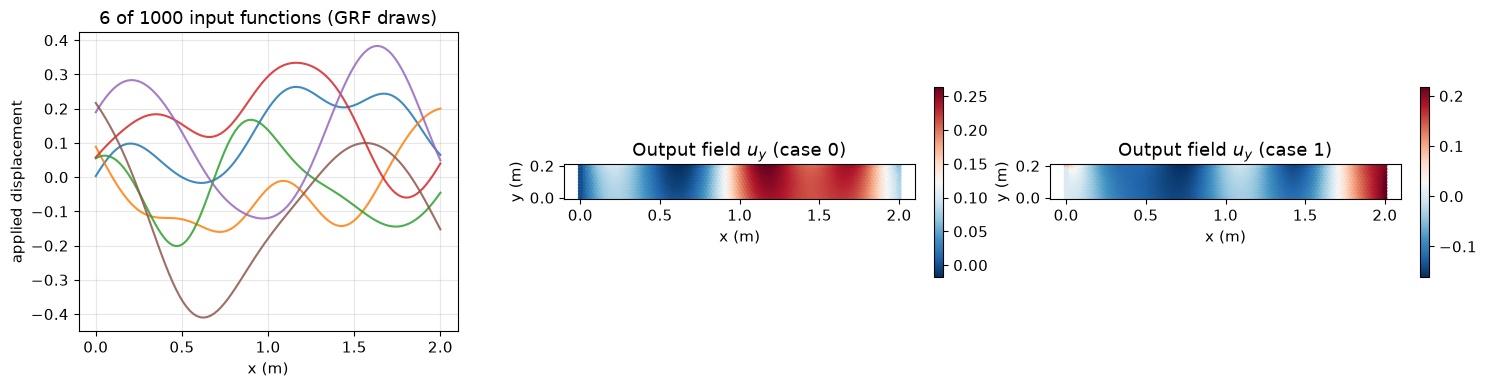

fig, ax = plt.subplots(1, 3, figsize=(15, 4))
for i in range(6):
ax[0].plot(sensor_loc, u_all[i], lw=1.5, alpha=.85)
ax[0].set(xlabel="x (m)", ylabel="applied displacement",
title=f"6 of {N_SAMPLES} input functions (GRF draws)")
ax[0].grid(alpha=.3)
for a, comp, name in ((ax[1], sy_all[0], "$u_y$ (case 0)"),
(ax[2], sy_all[1], "$u_y$ (case 1)")):
sc = a.scatter(xy[:, 0], xy[:, 1], c=comp, s=7, cmap="RdBu_r")
a.set(xlabel="x (m)", ylabel="y (m)", title=f"Output field {name}")
a.set_aspect("equal")
plt.colorbar(sc, ax=a, fraction=.025)
plt.tight_layout(); plt.show()
Each input is a function — a displacement profile along the beam — not a handful of scalars. Each output is a field on 1314 nodes. That is the shape of the problem operator learning is built for.

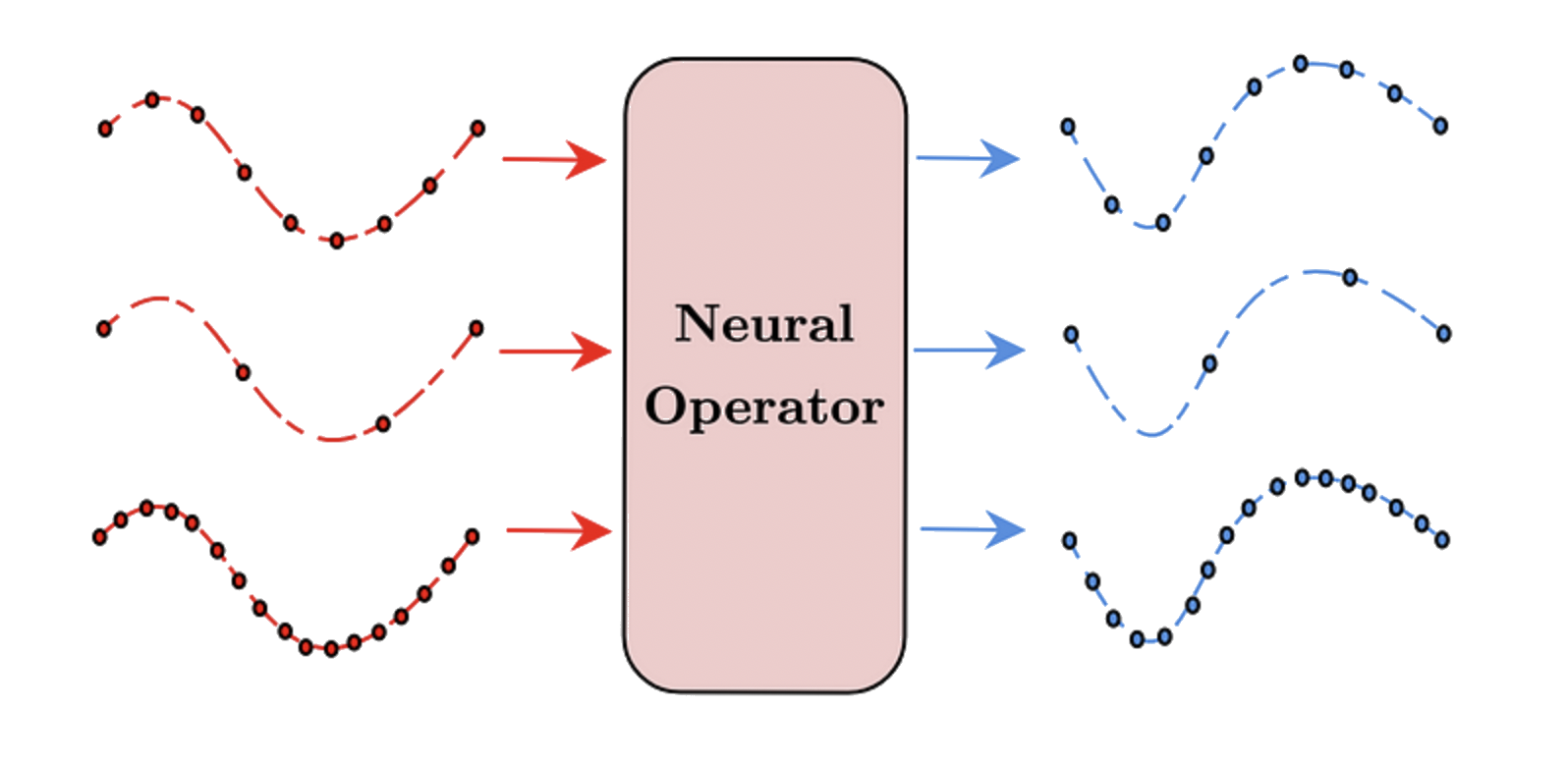

Part 1 — From functions to operators#
Modules 2 and 3 approximated functions: \(f: \mathbb{R}^d \to \mathbb{R}\), a finite vector in, a number out. An operator maps a function to a function:
Our target is the solution operator of the beam: given the applied displacement profile \(u\), return the displacement field \(s\).
A function is infinite-dimensional; a network takes vectors#
A function lives in an infinite-dimensional space. Networks take finite vectors.
The standard resolution is to discretise the input: evaluate \(u\) at \(m\) fixed sensor locations and feed the vector \([u(x_1), \dots, u(x_m)]\). Our data already does this, with \(m = 100\).
Note the asymmetry, because it matters later: the input is pinned to those 100 sensors, but the output can be queried at any \((x, y)\) we like. A DeepONet is mesh-free in its output and fixed-grid in its input. (Fourier Neural Operators relax the input side too — see Part 5.)
Why not just concatenate everything into one MLP?#
The obvious baseline: build a 102-dimensional input \([u_1, \dots, u_{100}, x, y]\) and map it to \((u_x, u_y)\) with a plain MLP. Nothing stops you. Let’s find out whether DeepONet’s structure earns its place, rather than assuming it.
# --- split, normalise (statistics from the training split only) ---
N_TRAIN = 800
idx_tr, idx_te = np.arange(N_TRAIN), np.arange(N_TRAIN, N_SAMPLES)
s_all = np.stack([sx_all, sy_all], axis=-1) # (1000, 1314, 2)
u_mu, u_sd = u_all[idx_tr].mean(), u_all[idx_tr].std()
s_sd = s_all[idx_tr].reshape(-1, 2).std(0) # per component
xy_lo, xy_hi = xy.min(0), xy.max(0)
T = lambda a: torch.tensor(a, dtype=torch.float32)
U_tr, U_te = T((u_all[idx_tr] - u_mu) / u_sd), T((u_all[idx_te] - u_mu) / u_sd)
S_tr, S_te = T(s_all[idx_tr] / s_sd), T(s_all[idx_te] / s_sd)
XY = T(2 * (xy - xy_lo) / (xy_hi - xy_lo) - 1) # -> [-1, 1]^2
print(f"train {len(U_tr)} cases test {len(U_te)} cases")
print(f"output std per component: u_x {s_sd[0]:.4f}, u_y {s_sd[1]:.4f}")
print("y spans 0.2 m and x spans 2 m, so the coordinates are rescaled to "
"[-1,1] -- otherwise the trunk barely sees y")
train 800 cases test 200 cases
output std per component: u_x 0.0411, u_y 0.1959
y spans 0.2 m and x spans 2 m, so the coordinates are rescaled to [-1,1] -- otherwise the trunk barely sees y
def mlp(sizes, act=nn.Tanh):
layers = []
for i in range(len(sizes) - 1):
layers.append(nn.Linear(sizes[i], sizes[i + 1]))
if i < len(sizes) - 2:
layers.append(act())
return nn.Sequential(*layers)
def rel_l2(pred, true):
"""Per-case relative L2 error in physical units, as a percentage."""
p = pred.reshape(len(pred), -1)
t = true.reshape(len(true), -1)
return np.linalg.norm(p - t, axis=1) / np.linalg.norm(t, axis=1) * 100
class NaiveMLP(nn.Module):
"""Concatenate the 100 sensor values with (x, y) and regress."""
def __init__(self, m=N_SENSORS, width=128, depth=5):
super().__init__()
self.net = mlp([m + 2] + [width] * depth + [2])
def forward(self, U, XY):
B, Q = U.shape[0], XY.shape[0]
Ue = U.unsqueeze(1).expand(B, Q, U.shape[1]) # (B, Q, m)
Xe = XY.unsqueeze(0).expand(B, Q, 2) # (B, Q, 2)
return self.net(torch.cat([Ue, Xe], dim=-1)) # (B, Q, 2)
def train_operator(model, epochs=400, lr=1e-3, bs=64, n_query=None,
eval_every=20, quiet=False, tag=""):
"""Minibatch Adam over load cases.
n_query: if set, use a random subset of that many query points per step.
The naive MLP needs this -- see the cost note below. The DeepONet
uses all 1314 nodes every step because it can afford to.
"""
opt = torch.optim.Adam(model.parameters(), lr=lr)
sched = torch.optim.lr_scheduler.CosineAnnealingLR(opt, T_max=epochs)
hist = {"train": [], "test": [], "test_epoch": []}
t0 = time.time()
for ep in range(epochs):
perm = torch.randperm(len(U_tr))
run = 0.0
for i in range(0, len(U_tr), bs):
b = perm[i:i + bs]
if n_query is None:
q, S = XY, S_tr[b]
else:
qi = torch.randint(0, len(XY), (n_query,))
q, S = XY[qi], S_tr[b][:, qi]
opt.zero_grad()
loss = ((model(U_tr[b], q) - S) ** 2).mean()
loss.backward(); opt.step()
run += loss.item()
sched.step()
hist["train"].append(run / max(1, len(U_tr) // bs))
# Evaluating the full test set is itself expensive for the naive model,
# so do it periodically rather than every epoch.
if ep % eval_every == 0 or ep == epochs - 1:
with torch.no_grad():
hist["test"].append(((model(U_te, XY) - S_te) ** 2).mean().item())
hist["test_epoch"].append(ep)
if not quiet:
print(f" {tag} epoch {ep:>4d} train {hist['train'][-1]:.3e} "
f"test {hist['test'][-1]:.3e} [{time.time()-t0:.0f}s]")
hist["seconds"] = time.time() - t0
return hist
torch.manual_seed(RNG)
naive = NaiveMLP()
n_naive = sum(p.numel() for p in naive.parameters())
print(f"NaiveMLP: {n_naive:,} parameters")
h_naive = train_operator(naive, epochs=400, n_query=128, tag="naive")
with torch.no_grad():
r_naive = rel_l2((naive(U_te, XY).numpy() * s_sd), S_te.numpy() * s_sd)
print(f"\nnaive MLP: mean relative L2 = {r_naive.mean():.2f}% "
f"(worst case {r_naive.max():.2f}%) in {h_naive['seconds']:.0f}s")
NaiveMLP: 79,490 parameters
naive epoch 0 train 9.608e-01 test 8.760e-01 [0s]
naive epoch 20 train 4.947e-01 test 4.684e-01 [2s]
naive epoch 40 train 1.189e-01 test 9.400e-02 [4s]
naive epoch 60 train 4.931e-02 test 4.629e-02 [6s]
naive epoch 80 train 3.479e-02 test 3.641e-02 [8s]
naive epoch 100 train 2.740e-02 test 3.171e-02 [10s]
naive epoch 120 train 2.407e-02 test 2.020e-02 [12s]
naive epoch 140 train 1.918e-02 test 1.657e-02 [14s]
naive epoch 160 train 1.281e-02 test 1.331e-02 [16s]
naive epoch 180 train 1.230e-02 test 1.226e-02 [18s]
naive epoch 200 train 1.072e-02 test 1.021e-02 [20s]
naive epoch 220 train 8.829e-03 test 9.463e-03 [22s]
naive epoch 240 train 8.024e-03 test 8.443e-03 [24s]
naive epoch 260 train 7.404e-03 test 7.541e-03 [26s]
naive epoch 280 train 7.734e-03 test 7.738e-03 [28s]
naive epoch 300 train 6.255e-03 test 6.967e-03 [30s]
naive epoch 320 train 5.962e-03 test 6.613e-03 [32s]
naive epoch 340 train 6.732e-03 test 6.428e-03 [34s]
naive epoch 360 train 6.078e-03 test 6.328e-03 [36s]
naive epoch 380 train 5.953e-03 test 6.267e-03 [38s]
naive epoch 399 train 6.469e-03 test 6.255e-03 [40s]
naive MLP: mean relative L2 = 6.82% (worst case 15.84%) in 40s

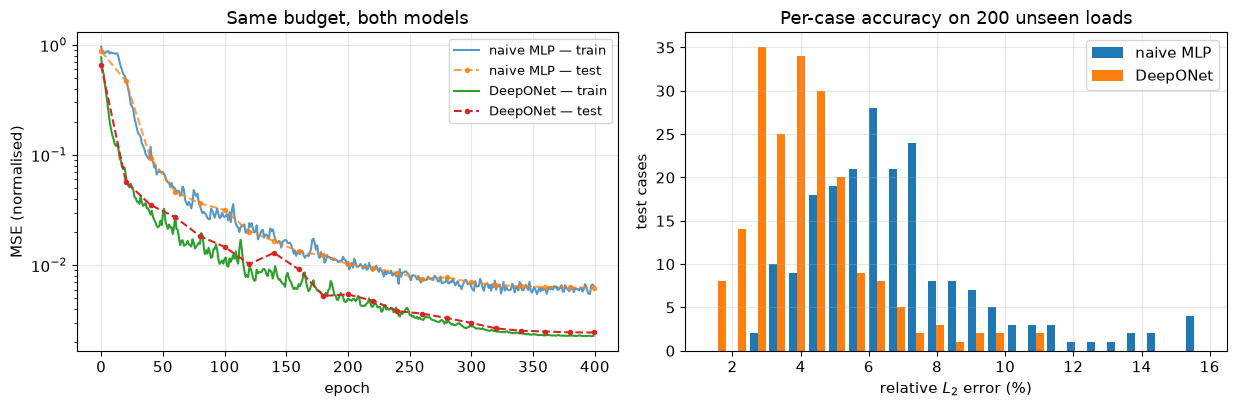

Keep that number. The DeepONet will get the same parameter budget, the same optimiser, and the same number of epochs.
One detail that is not a detail: n_query=128#
The naive model had to be trained on a random subset of 128 query points per step, while the DeepONet below trains on all 1314 every step. That is not us handicapping the baseline — it is the baseline being unaffordable otherwise.
The reason is structural. To predict at \(Q\) points, the naive model must push the 100 sensor values through its layers \(Q\) separate times, because they are concatenated with the coordinates before the first layer. At 1314 nodes that is 1314 copies of the same input function through the same weights.
We measure exactly how much that costs in Part 3, once we have something to compare it against.
Part 2 — The operator universal approximation theorem#
Module 2 leaned on Cybenko/Hornik: networks are dense in \(C(K)\). There is an operator analogue, and it is older than you might expect.
Theorem (Chen & Chen, 1995). Let \(\sigma\) be a continuous non-polynomial activation, \(K_1 \subset \mathbb{R}^d\) and \(V \subset C(K_1)\) compact, and \(\mathcal{G}: V \to C(K_2)\) a continuous operator. Then for any \(\varepsilon > 0\) there are \(m\) sensor points \(x_j\), integers \(p\), and network weights such that $\(\left|\; \mathcal{G}(u)(y) \;-\; \sum_{k=1}^{p} \underbrace{b_k\!\left(u(x_1), \dots, u(x_m)\right)}_{\text{branch}} \cdot \underbrace{t_k(y)}_{\text{trunk}} \;\right| < \varepsilon\)\( for all \)u \in V\( and all \)y \in K_2$.
The sum of products is branch times trunk#
That sum is DeepONet. Lu et al. (2019) took the theorem literally and made both factors neural networks:
Piece |
Input |
Output |
Role |
|---|---|---|---|
Branch net |
\(u\) at \(m\) sensors |
\(p\) coefficients |
encodes which load case this is |
Trunk net |
a query point \(y\) |
\(p\) basis values |
builds a basis over the domain |
Inner product |
one field value |
combines them |
Part 3 — Implementation#
Two subtleties.
Two output components. We need \(u_x\) and \(u_y\). Rather than two separate networks, have branch and trunk each emit \(2p\) values and read them as \(2 \times p\) — one set of coefficients and one basis per component.
The contraction. With a batch of \(B\) load cases and \(Q\) query points we want
a \((B, Q, 2)\) output from a \((B, 2, p)\) branch and a \((Q, 2, p)\) trunk. That is
one einsum:
torch.einsum("bop,qop->bqo", branch_out, trunk_out)
summing over the basis index p while keeping batch b, query q, and
component o — no loops, no broadcasting by hand.
class DeepONet(nn.Module):
"""G(u)(y) = sum_k b_k(u) * t_k(y) + bias, per output component."""
def __init__(self, m=N_SENSORS, p=100, width=128, depth=5, n_out=2):
super().__init__()
self.p, self.n_out = p, n_out
self.branch = mlp([m] + [width] * depth + [p * n_out])
self.trunk = mlp([2] + [width] * depth + [p * n_out])
self.bias = nn.Parameter(torch.zeros(n_out))
def forward(self, U, XY):
B = self.branch(U).view(-1, self.n_out, self.p) # (B, out, p)
Tk = self.trunk(XY).view(-1, self.n_out, self.p) # (Q, out, p)
return torch.einsum("bop,qop->bqo", B, Tk) + self.bias
def basis(self, XY):
"""The learned trunk basis, shape (Q, n_out, p)."""
with torch.no_grad():
return self.trunk(XY).view(-1, self.n_out, self.p)
def coeffs(self, U):
"""Branch coefficients per load case, shape (B, n_out, p)."""
with torch.no_grad():
return self.branch(U).view(-1, self.n_out, self.p)
torch.manual_seed(RNG)
don = DeepONet(p=100, width=128, depth=5)
n_don = sum(q.numel() for q in don.parameters())
print(f"DeepONet: {n_don:,} parameters "
f"(naive MLP had {sum(q.numel() for q in naive.parameters()):,})")
DeepONet: 197,010 parameters (naive MLP had 79,490)
First, the cost claim from Part 1, measured#
Same batch, same number of query points, one training step each.
def time_step(model, n_query, reps=3):
"""Seconds per training step for one batch of 64 at n_query query points."""
qi = torch.randint(0, len(XY), (n_query,))
q, S = XY[qi], S_tr[:64][:, qi]
opt = torch.optim.Adam(model.parameters(), lr=1e-12) # timing only
for _ in range(2): # warm up
opt.zero_grad(); ((model(U_tr[:64], q) - S) ** 2).mean().backward(); opt.step()
t0 = time.time()
for _ in range(reps):
opt.zero_grad()
((model(U_tr[:64], q) - S) ** 2).mean().backward()
opt.step()
return (time.time() - t0) / reps
print(f" {'query points':>13s} {'naive MLP':>12s} {'DeepONet':>12s} {'ratio':>8s}")
for nq in (128, 512, N_NODES):
a = time_step(naive, nq)
b = time_step(don, nq)
print(f" {nq:>13d} {a*1000:>10.1f}ms {b*1000:>10.1f}ms {a/b:>7.1f}x")
print(f"\n The naive model's cost grows with the number of query points because")
print(f" it re-encodes the input function at each one. The DeepONet's barely")
print(f" moves: the branch runs once, and only the trunk sees the extra points.")
query points naive MLP DeepONet ratio
128 7.3ms 2.2ms 3.3x
512 26.5ms 4.3ms 6.2x
1314 69.9ms 4.6ms 15.2x
The naive model's cost grows with the number of query points because
it re-encodes the input function at each one. The DeepONet's barely
moves: the branch runs once, and only the trunk sees the extra points.
That ratio is the architecture’s justification. It is also why the naive baseline had to be trained on 128 sampled points while the DeepONet trains on all 1314 — so bear in mind the accuracy comparison below actually favours the baseline, since it is the one that got the cheaper problem.
Same optimiser and epochs as the baseline#
Same optimiser, same epochs, same batch size as the naive baseline — but all 1314 query points per step.
h_don = train_operator(don, epochs=400, tag="deeponet")
with torch.no_grad():
pred_te = don(U_te, XY).numpy() * s_sd
true_te = S_te.numpy() * s_sd
r_don = rel_l2(pred_te, true_te)
print(f"\n{'model':<12s} {'params':>10s} {'seconds':>9s} {'mean rel L2':>13s} {'worst':>9s}")
print(f"{'naive MLP':<12s} {sum(p.numel() for p in naive.parameters()):>10,} "
f"{h_naive['seconds']:>9.0f} {r_naive.mean():>12.2f}% {r_naive.max():>8.2f}%")
print(f"{'DeepONet':<12s} {n_don:>10,} {h_don['seconds']:>9.0f} "
f"{r_don.mean():>12.2f}% {r_don.max():>8.2f}%")
deeponet epoch 0 train 7.706e-01 test 6.541e-01 [0s]
deeponet epoch 20 train 6.500e-02 test 5.722e-02 [1s]
deeponet epoch 40 train 2.870e-02 test 3.521e-02 [3s]
deeponet epoch 60 train 2.793e-02 test 2.726e-02 [4s]
deeponet epoch 80 train 1.559e-02 test 1.838e-02 [5s]
deeponet epoch 100 train 1.144e-02 test 1.466e-02 [6s]
deeponet epoch 120 train 9.395e-03 test 1.022e-02 [7s]
deeponet epoch 140 train 8.492e-03 test 1.293e-02 [9s]
deeponet epoch 160 train 6.722e-03 test 9.157e-03 [10s]
deeponet epoch 180 train 5.332e-03 test 5.258e-03 [11s]
deeponet epoch 200 train 4.953e-03 test 5.412e-03 [12s]
deeponet epoch 220 train 4.176e-03 test 4.756e-03 [14s]
deeponet epoch 240 train 3.772e-03 test 3.828e-03 [15s]
deeponet epoch 260 train 3.212e-03 test 3.627e-03 [16s]
deeponet epoch 280 train 2.983e-03 test 3.311e-03 [17s]
deeponet epoch 300 train 2.765e-03 test 2.986e-03 [19s]
deeponet epoch 320 train 2.509e-03 test 2.662e-03 [20s]
deeponet epoch 340 train 2.415e-03 test 2.540e-03 [21s]
deeponet epoch 360 train 2.310e-03 test 2.495e-03 [22s]
deeponet epoch 380 train 2.284e-03 test 2.452e-03 [24s]
deeponet epoch 399 train 2.277e-03 test 2.446e-03 [25s]
model params seconds mean rel L2 worst
naive MLP 79,490 40 6.82% 15.84%
DeepONet 197,010 25 4.13% 10.86%
fig, ax = plt.subplots(1, 2, figsize=(12.5, 4.2))
ax[0].semilogy(h_naive["train"], label="naive MLP — train", alpha=.75)
ax[0].semilogy(h_naive["test_epoch"], h_naive["test"], "o--", ms=3,
label="naive MLP — test", alpha=.75)
ax[0].semilogy(h_don["train"], label="DeepONet — train")
ax[0].semilogy(h_don["test_epoch"], h_don["test"], "o--", ms=3,
label="DeepONet — test")
ax[0].set(xlabel="epoch", ylabel="MSE (normalised)", title="Same budget, both models")
ax[0].legend(fontsize=9); ax[0].grid(alpha=.3)
ax[1].hist([r_naive, r_don], bins=25, label=["naive MLP", "DeepONet"])
ax[1].set(xlabel="relative $L_2$ error (%)", ylabel="test cases",
title="Per-case accuracy on 200 unseen loads")
ax[1].legend(); ax[1].grid(alpha=.3)
plt.tight_layout(); plt.show()
Both curves sit almost on top of their training counterparts — with 800 load cases and no label noise, neither model is overfitting (exactly the point Module 2 made about noise).

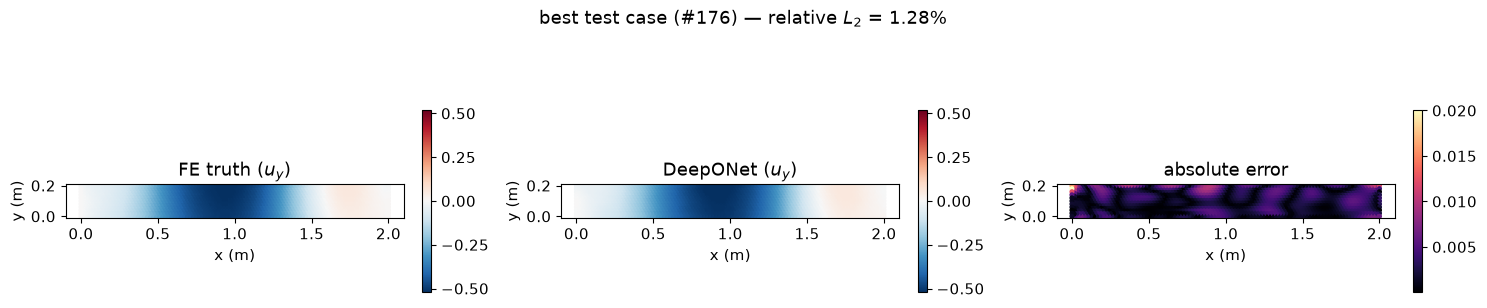

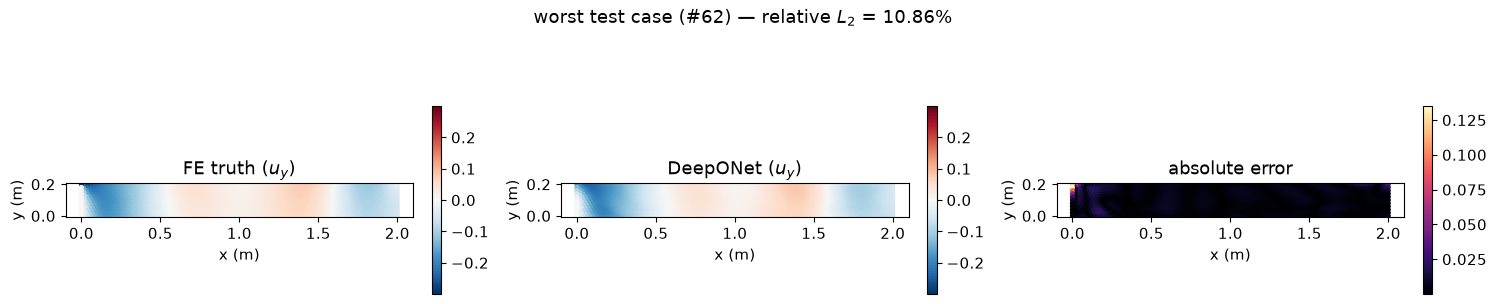

Best and worst test cases, field by field#
worst = int(np.argmax(r_don))
best = int(np.argmin(r_don))
for case, label in ((best, "best"), (worst, "worst")):
fig, ax = plt.subplots(1, 3, figsize=(15, 3.1))
t, p = true_te[case, :, 1], pred_te[case, :, 1] # u_y component
vmax = np.abs(t).max()
for a, val, title, cmap, lim in (
(ax[0], t, "FE truth ($u_y$)", "RdBu_r", vmax),
(ax[1], p, "DeepONet ($u_y$)", "RdBu_r", vmax),
(ax[2], np.abs(p - t), "absolute error", "magma", None)):
sc = a.scatter(xy[:, 0], xy[:, 1], c=val, s=7, cmap=cmap,
vmin=-lim if lim else None, vmax=lim if lim else None)
a.set(title=title, xlabel="x (m)", ylabel="y (m)")
a.set_aspect("equal")
plt.colorbar(sc, ax=a, fraction=.025)
fig.suptitle(f"{label} test case (#{case}) — relative $L_2$ = "
f"{r_don[case]:.2f}%", y=1.06)
plt.tight_layout(); plt.show()

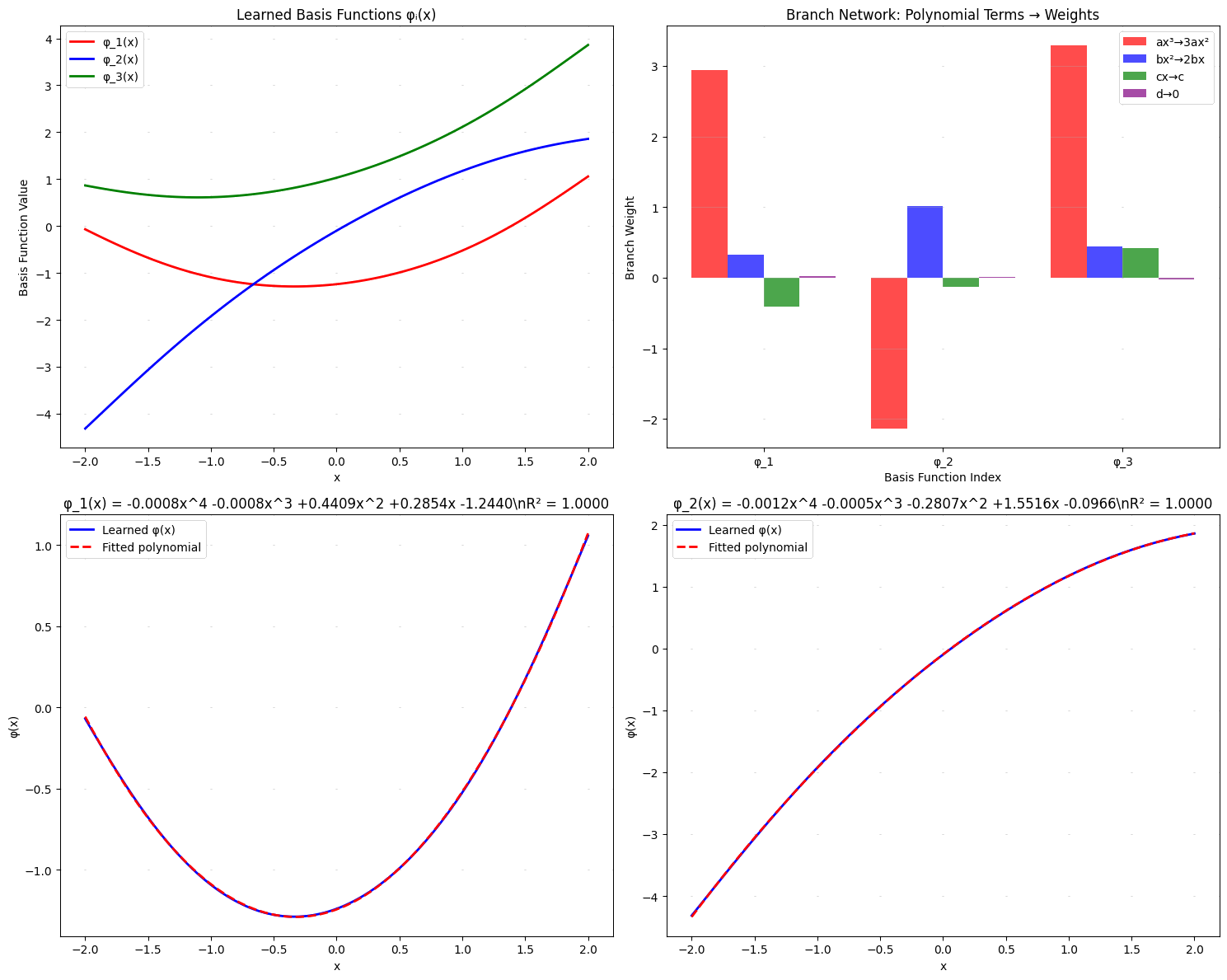

Part 4 — The learned basis#
The trunk never sees a load case. It is a function of position only, so the \(p\) functions \(t_k(x, y)\) form a basis for every deflection field the operator can produce. The branch merely picks coefficients.
So: what basis did it discover?
basis = don.basis(XY).numpy() # (Q, 2, p)
coef = don.coeffs(U_te).numpy() # (B, 2, p)
# Rank the modes by how much they actually contribute:
# contribution_k = std of coefficient k x norm of basis function k
contrib = coef[:, 1, :].std(0) * np.linalg.norm(basis[:, 1, :], axis=0)
order = np.argsort(contrib)[::-1]
print(f"basis shape {basis.shape} (nodes, components, modes)")
print(f"\ntop 8 modes by contribution (of {don.p}):")
for r, k in enumerate(order[:8]):
print(f" rank {r+1} mode {k:>3d} contribution {contrib[k]:.4f}")
cum = np.cumsum(contrib[order]) / contrib.sum()
n90 = int(np.searchsorted(cum, 0.90) + 1)
print(f"\n{n90} of {don.p} modes carry 90% of the total contribution")
basis shape (1314, 2, 100) (nodes, components, modes)
top 8 modes by contribution (of 100):
rank 1 mode 14 contribution 3.0237
rank 2 mode 19 contribution 2.3536
rank 3 mode 98 contribution 2.2409
rank 4 mode 10 contribution 2.1913
rank 5 mode 87 contribution 2.0748
rank 6 mode 43 contribution 2.0611
rank 7 mode 49 contribution 1.8623
rank 8 mode 95 contribution 1.8412
82 of 100 modes carry 90% of the total contribution

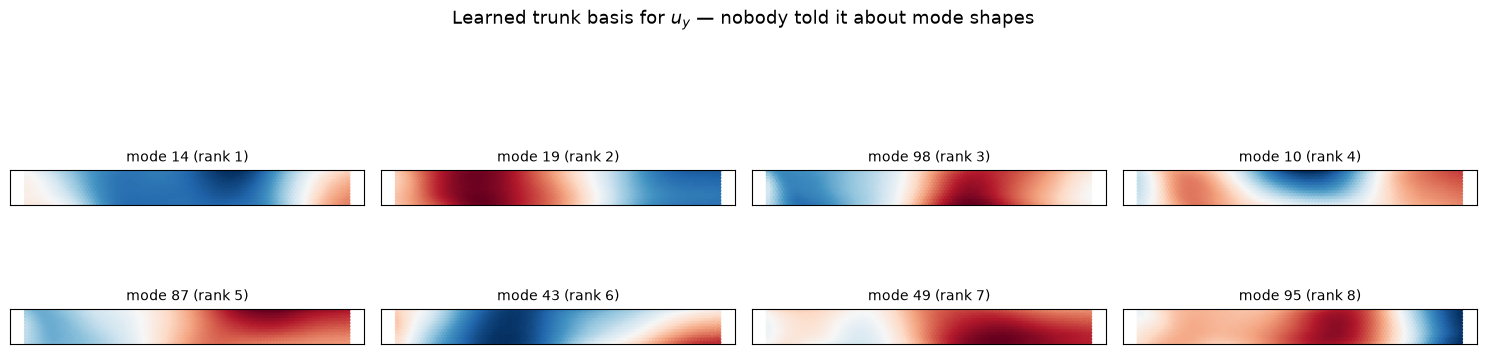

fig, axes = plt.subplots(2, 4, figsize=(15, 4.4))
for r, (a, k) in enumerate(zip(axes.ravel(), order[:8])):
b = basis[:, 1, k]
lim = np.abs(b).max()
a.scatter(xy[:, 0], xy[:, 1], c=b, s=5, cmap="RdBu_r", vmin=-lim, vmax=lim)
a.set_title(f"mode {k} (rank {r+1})", fontsize=10)
a.set_aspect("equal"); a.set_xticks([]); a.set_yticks([])
plt.suptitle(r"Learned trunk basis for $u_y$ — nobody told it about mode shapes",
y=1.02)
plt.tight_layout(); plt.show()
Smooth, structured, and clearly organised by spatial frequency — with no beam mode shape, polynomial, or Fourier term ever supplied.
But look again at the contribution numbers above. They are flat: the top mode scores about 3.0 and the eighth still about 1.8, and it took 82 of the 100 modes to reach 90% of the total. That is not what a good basis looks like. Let’s find out what is going on, because the answer is the most useful thing in this module.
How many dimensions does this problem actually have?#
Ask the data, independently of the network. A POD (equivalently, an SVD) of the 800 training fields gives the intrinsic dimensionality of the solution manifold.
from scipy.linalg import subspace_angles
# --- POD of the FE fields (u_y component) ---
Y = S_tr.numpy()[:, :, 1] * s_sd[1] # (800, 1314), physical units
Y_mean = Y.mean(0, keepdims=True)
U_pod, sv_pod, _ = np.linalg.svd((Y - Y_mean).T, full_matrices=False)
energy_pod = np.cumsum(sv_pod**2) / np.sum(sv_pod**2)
print("POD of the 800 FE displacement fields:")
print(f" leading singular values: {np.array2string(sv_pod[:8], precision=1)}")
for tgt in (0.90, 0.99, 0.999):
print(f" modes for {tgt*100:>5.1f}% of field energy: "
f"{int(np.searchsorted(energy_pod, tgt) + 1):>3d}")
print("\n -> the physics lives on a roughly 6-dimensional manifold,")
print(" and we handed the trunk p = 100 basis functions.")
POD of the 800 FE displacement fields:
leading singular values: [122.4 109.4 84.2 59.1 41.3 26. 15.6 8.4]
modes for 90.0% of field energy: 4
modes for 99.0% of field energy: 6
modes for 99.9% of field energy: 8
-> the physics lives on a roughly 6-dimensional manifold,
and we handed the trunk p = 100 basis functions.
Six modes for 99% of the energy. The solution manifold really is low-dimensional — so the flat contribution spectrum is not the problem being high-rank. It is the network’s basis being wasteful.
Did the trunk find the right subspace?#
Two separate questions, and they have different answers:
Does the trunk span the space the POD modes span?
Are the trunk’s individual modes a good basis for it?
T_y = basis[:, 1, :] # (1314, 100) trunk basis
U_tr_b, sv_tr, _ = np.linalg.svd(T_y, full_matrices=False)
energy_tr = np.cumsum(sv_tr**2) / np.sum(sv_tr**2)
# How orthogonal are the 100 trunk modes? POD modes would give exactly 0.
G = T_y.T @ T_y
G_norm = G / np.sqrt(np.outer(np.diag(G), np.diag(G)))
off_diag = np.abs(G_norm[~np.eye(len(G_norm), dtype=bool)])
print(f" condition number of the trunk basis : {sv_tr[0] / sv_tr[-1]:>12,.0f}")
print(f" mean |cosine| between distinct modes: {off_diag.mean():>12.3f}"
" (POD would be 0.000)")
print()
print(" Q1: does the trunk SPAN the POD subspace?")
print(" principal angles between the leading k directions of each:")
for k in (2, 4, 6, 8):
ang = np.degrees(subspace_angles(U_pod[:, :k], U_tr_b[:, :k]))
print(f" k={k:>2d} largest angle {ang.max():>5.1f} deg")
condition number of the trunk basis : 224,334
mean |cosine| between distinct modes: 0.373 (POD would be 0.000)
Q1: does the trunk SPAN the POD subspace?
principal angles between the leading k directions of each:
k= 2 largest angle 12.1 deg
k= 4 largest angle 10.7 deg
k= 6 largest angle 82.4 deg
k= 8 largest angle 87.7 deg
Both answers at once.
Yes, it found the space — the important part of it. The trunk’s leading four directions sit within about 12 degrees of the four leading POD modes, and those four carry ~93% of the field energy. The network independently rediscovered the dominant deformation modes of a cantilever from 800 solutions. That is a real result and it is why the pictures above look like mode shapes.
No, it is not a good basis. Three measurements say so:
Non-orthogonal. The mean absolute cosine between distinct trunk modes is around 0.4. POD modes are orthogonal by construction; these overlap heavily and encode the same information many times over.
Catastrophically ill-conditioned. A condition number in the hundreds of thousands. The 100 modes are very nearly linearly dependent.
Unordered past the leading few. At \(k = 6\) one principal angle jumps to above 80 degrees, and it only gets worse from there. The trunk’s sixth direction has nothing to do with the POD’s sixth. Nothing in the loss asked for an ordering, so there isn’t one.

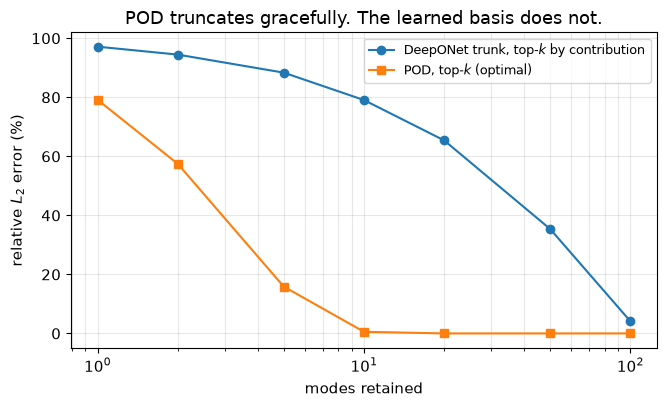

The consequence: you cannot truncate it#
POD comes with the Eckart-Young guarantee — keep the top \(k\) modes and you have the provably best rank-\(k\) approximation of the data. A DeepONet trunk comes with no such promise, and here is what that costs. (The two columns are not measuring identical things: POD reconstructs the training fields it was computed from, while the DeepONet predicts unseen ones. Read the shapes of the two curves, not the gap at any single \(k\).)
def truncated_pred(model, U, XY, keep):
"""Reconstruct using only the `keep` highest-contribution trunk modes."""
B = model.coeffs(U).numpy()
Tk = model.basis(XY).numpy()
sel = order[:keep]
out = np.einsum("bop,qop->bqo", B[:, :, sel], Tk[:, :, sel])
return (out + model.bias.detach().numpy()) * s_sd
keeps = [1, 2, 5, 10, 20, 50, don.p]
errs = [rel_l2(truncated_pred(don, U_te, XY, k), true_te).mean() for k in keeps]
pod_errs = []
for k in keeps:
coef = (Y - Y_mean) @ U_pod[:, :k]
rec = coef @ U_pod[:, :k].T + Y_mean
pod_errs.append(np.linalg.norm(rec - Y) / np.linalg.norm(Y) * 100)
print(f" {'k':>5s} {'DeepONet top-k':>16s} {'POD top-k':>12s}")
for k, e, pe in zip(keeps, errs, pod_errs):
print(f" {k:>5d} {e:>15.2f}% {pe:>11.2f}%")
plt.figure(figsize=(6.8, 4.2))
plt.semilogx(keeps, errs, "o-", label="DeepONet trunk, top-$k$ by contribution")
plt.semilogx(keeps, pod_errs, "s-", label="POD, top-$k$ (optimal)")
plt.xlabel("modes retained"); plt.ylabel("relative $L_2$ error (%)")
plt.title("POD truncates gracefully. The learned basis does not.")
plt.legend(fontsize=9); plt.grid(True, which="both", alpha=.3)
plt.tight_layout(); plt.show()
k DeepONet top-k POD top-k
1 97.15% 79.16%
2 94.46% 57.45%
5 88.35% 15.85%
10 79.07% 0.56%
20 65.40% 0.00%
50 35.38% 0.00%
100 4.13% 0.00%
POD falls below 1% by 10 modes and keeps collapsing. The DeepONet basis, truncated the same way, is still ~35% wrong at 50 of 100 modes and only becomes usable when essentially all of them are kept — because the information is smeared across every mode, and dropping any destroys cancellations the network relied on.
So: a DeepONet is a learned spectral method with an unmanaged basis. It finds the right subspace and represents it wastefully. That matters when you want to compress the model, interpret the modes beyond the leading few, or trust the mode count as a rank estimate.
Three standard fixes, in increasing order of effort:
Orthogonalise after training. A QR or SVD of the trunk matrix, as we just did, gives an ordered orthonormal basis for the same span — free, and enough for interpretation.
Penalise non-orthogonality during training. Add \(\|T^\top T - I\|^2\) to the loss and the trunk comes out closer to POD-like.
POD-DeepONet. Skip the learning entirely for the trunk: compute POD modes from the training fields and let the branch learn only the coefficients. Often more accurate and smaller, at the cost of a fixed output basis.
The honest summary is that the basis picture is the most interesting thing a DeepONet gives you and the part most in need of scrutiny. A pretty mode plot is not evidence of a well-conditioned model.
Part 5 — Zero-shot prediction, and the limits#
The claim that started the module: a new load case costs one forward pass, not a retrain. Let’s price it.
new_cases = U_te[:32]
t0 = time.time()
with torch.no_grad():
_ = don(new_cases, XY)
t_infer = time.time() - t0
print(f" 32 unseen load cases, full 1314-node field each")
print(f" DeepONet inference : {t_infer*1000:>9.1f} ms "
f"({t_infer/32*1000:.2f} ms per case)")
print(f" DeepONet training : {h_don['seconds']:>9.1f} s (once, amortised)")
print()
print(" For comparison, from Module 4: a PINN needs a full retrain per load")
print(" case -- seconds to minutes each, and it never gets cheaper.")
print(f"\n Speedup for a 1000-case design study: roughly "
f"{1000 * 4.0 / (h_don['seconds'] + 1000 * t_infer / 32):,.0f}x")
print(" (taking 4 s per PINN solve, the fast end of what we measured)")
32 unseen load cases, full 1314-node field each
DeepONet inference : 2.1 ms (0.07 ms per case)
DeepONet training : 24.9 s (once, amortised)
For comparison, from Module 4: a PINN needs a full retrain per load
case -- seconds to minutes each, and it never gets cheaper.
Speedup for a 1000-case design study: roughly 160x
(taking 4 s per PINN solve, the fast end of what we measured)
Querying points that are not FE nodes#

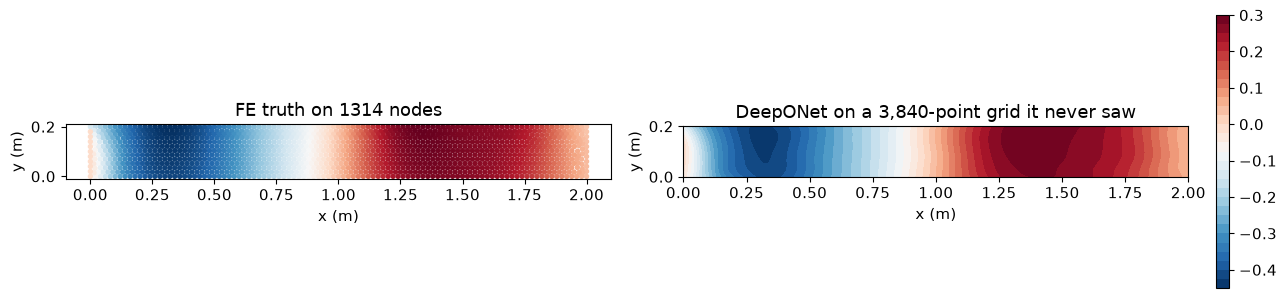

The trunk takes any \((x, y)\), so we can evaluate the field on a grid the mesh never had. This is the mesh-free property, and it is genuinely useful for post-processing.
gx, gy = np.meshgrid(np.linspace(0, 2, 160), np.linspace(0, 0.2, 24))
grid = np.stack([gx.ravel(), gy.ravel()], 1)
XY_grid = T(2 * (grid - xy_lo) / (xy_hi - xy_lo) - 1)
with torch.no_grad():
on_grid = (don(U_te[:1], XY_grid).numpy() * s_sd)[0, :, 1]
fig, ax = plt.subplots(1, 2, figsize=(13, 3.2))
ax[0].scatter(xy[:, 0], xy[:, 1], c=true_te[0, :, 1], s=8, cmap="RdBu_r")
ax[0].set(title=f"FE truth on {N_NODES} nodes", xlabel="x (m)", ylabel="y (m)")
im = ax[1].contourf(gx, gy, on_grid.reshape(gx.shape), levels=30, cmap="RdBu_r")
ax[1].set(title=f"DeepONet on a {gx.size:,}-point grid it never saw",
xlabel="x (m)", ylabel="y (m)")
for a in ax:
a.set_aspect("equal")
plt.colorbar(im, ax=ax[1], fraction=.025)
plt.tight_layout(); plt.show()
800 FE solves, a fixed sensor grid, and no enforced physics#
The training data is the expensive part. We used 800 finite element solves. DeepONet moved the cost from query time to a one-off offline campaign — it did not remove it. The economics only work if you will make many queries.
It only knows the family it was trained on. Our loads were Gaussian random field draws with a particular length scale. Feed it a point load, or a GRF with a much shorter correlation length, and it will extrapolate — badly, and without warning. This is the UAT domain caveat from Module 2, now applying to a space of functions, where “outside the training distribution” is much harder to detect.
The input grid is fixed. Change your sensor layout and the branch network is invalid. Fourier Neural Operators address exactly this by working in Fourier space, giving discretisation invariance — train at one resolution, evaluate at another.
No physics is enforced. This is a purely data-driven fit. Nothing in the loss requires equilibrium, and the predicted field can violate it.
Summary#
Operators map functions to functions |
Discretise the input at \(m\) sensors; the output stays mesh-free. |
Chen & Chen (1995) gives the architecture |
\(\mathcal{G}(u)(y) \approx \sum_k b_k(u)\,t_k(y)\) — branch times trunk, read literally. |
The factorisation is the efficiency |
The trunk is computed once per batch and shared across all query points; the naive MLP repeats the input 1314 times. |
The trunk is a learned basis |
Smooth, increasing-frequency modes that nobody specified — a learned spectral method, and a low-rank diagnostic. |
Queries become free, training does not |
800 FE solves offline buys millisecond inference. Worth it only for many-query workflows. |
It knows only its training family |
Out-of-distribution input functions fail silently. |
PI-DeepONet closes the loop |
Add Module 4’s residual to Module 5’s loss and shed the labelled data. |
Formula, network, explanation, physics, operator#
Module 1 fit a formula. Module 2 replaced the formula with a network when we no longer knew the right features. Module 3 interrogated the network. Module 4 replaced the data with physics. Module 5 replaced one solution with the solution operator.
Go deeper#
DesignSafe DeepONet training — the original JAX/Flax version of this example, by Somdatta Goswami
Lu, Jin & Karniadakis (2019), DeepONet · Chen & Chen (1995), the operator UAT · Li et al. (2020), Fourier Neural Operator
