Access Output Data#
by Silvia Mazzoni, DesignSafe, 2025
You can use tapis to obtain the job metadata, and, hence, the path to the archived output files. You can, therefore, manage those files.
Configure Python#
Using local utilities library
Connect to Tapis#
t=OpsUtils.connect_tapis()
-- Checking Tapis token --
Token loaded from file. Token is still valid!
Token expires at: 2025-08-21T02:49:32+00:00
Token expires in: 3:38:26.610025
-- LOG IN SUCCESSFUL! --
User Input: job id#
jobUuid = '4dfa35e1-15cd-48fd-a090-f348544dee1f-007'
Use a function to get the job metadata.#
get_tapis_job_metadata.py
# ../OpsUtils/OpsUtils/Tapis/get_tapis_job_metadata.py
def get_tapis_job_metadata(t, jobUuid,printAll = True):
"""
Retrieves and prints metadata for a specified Tapis job, including robust local archive reconstruction.
This function queries the Tapis jobs API for metadata on a given job, printing
details such as UUID, name, status, application ID, creation time, and archive location.
If the job has completed successfully (status == 'FINISHED'), it reconstructs
the expected local archive directory path under '~/MyData/tapis-jobs-archive',
checks whether it exists, lists its contents, and returns this information
in a structured dictionary.
If the job is not yet finished or the local directory does not exist, it prints
a notice and returns a dictionary describing the situation.
Parameters
----------
t : object
An authenticated Tapis client instance (e.g., from `tapis3`).
jobUuid : str
UUID of the job whose metadata is to be retrieved.
Returns
-------
dict
A dictionary with the following keys:
- "local_path" (str or None): local archive directory path if job is finished, else None.
- "exists" (bool): True if the local directory exists.
- "files" (list of str): list of files in the directory if it exists.
- "message" (str, optional): explanatory message if no data is available.
Prints
------
- Job UUID, name, status, appId, creation time, and archive directory.
- If finished, the reconstructed local archive path and the files contained within it,
or a notice if the local directory does not exist.
Example
-------
>>> result = get_tapis_job_metadata(t, "a1b2c3d4-5678-90ef-ghij-klmnopqrstuv")
>>> if result["exists"]:
... print("Archived job data at:", result["local_path"])
... print("Files:", result["files"])
... else:
... print(result.get("message", "Job not yet completed."))
"""
# Silvia Mazzoni, 2025
import os
import json
if printAll:
import ipywidgets as widgets
from IPython.display import display, clear_output
metadata_out = widgets.Output()
metadata_accordion = widgets.Accordion(children=[metadata_out])
metadata_accordion.set_title(0, f'Job Metadata ({jobUuid})')
metadata_accordion.selected_index = 0
display(metadata_accordion)
job_response = t.jobs.getJob(jobUuid=jobUuid)
job_dict_all = json.loads(json.dumps(job_response, default=lambda o: vars(o)))
if printAll:
with metadata_out:
# print('+++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++')
print('+++++++++++++++++++++++++')
print('++++++ Job Metadata')
print('+++++++++++++++++++++++++')
print('+ uuid: ', job_response.uuid)
print('+ name: ', job_response.name)
print('+ status: ', job_response.status)
print('+ appId: ', job_response.appId)
print('+ created: ', job_response.created)
print('+ output-file location')
print('+ archiveSystemId:', job_response.archiveSystemId)
print('+ archiveSystemDir:', job_response.archiveSystemDir)
# ------
execSystemId = job_response.execSystemId
archiveSystemId = job_response.archiveSystemId
sysPath = ''
if archiveSystemId == 'designsafe.storage.default':
sysPath = 'MyData';
elif archiveSystemId in ['Work','work','cloud.data','stampede3',execSystemId]:
sysPath = f'Work/{execSystemId}';
if archiveSystemId == 'designsafe.storage.community':
sysPath = 'CommunityData'; ## but you can't write to community
if archiveSystemId == 'designsafe.storage.published':
sysPath = 'Published'; ## but you can't write to published!
archiveSystemDir = job_dict_all['archiveSystemDir']
archiveSystemDir_user = archiveSystemDir.split('tapis-jobs-archive'+os.path.sep)[1] # remove the first character slash
archiveSystemDir_user = os.path.join(sysPath,'tapis-jobs-archive',archiveSystemDir_user)
archiveSystemDir_out = archiveSystemDir_user
if job_response.appId in ["opensees-mp-s3","opensees-sp-s3"]:
archiveSystemDir_out = os.path.join(archiveSystemDir_out,'inputDirectory')
elif job_response.appId in ["opensees-express"]:
fileInputsList = json.loads(job_dict_all['fileInputs'])
for fileInputs in fileInputsList:
if fileInputs['name'] in ['Input Directory'] or fileInputs['envKey'] in ['inputDirectory']:
sourceUrl = fileInputs['sourceUrl']
input_folder_end = os.path.basename(sourceUrl)
archiveSystemDir_out = os.path.join(archiveSystemDir_user,input_folder_end)
break
# if sysPath != '':
archiveSystemDir_user = os.path.expanduser(os.path.join('~',archiveSystemDir_user))
archiveSystemDir_out = os.path.expanduser(os.path.join('~',archiveSystemDir_out))
job_dict_all['archiveSystemDir_user'] = archiveSystemDir_user
job_dict_all['archiveSystemDir_out'] = archiveSystemDir_out
if printAll:
with metadata_out:
print('+ archiveSystemDir_user:', job_dict_all['archiveSystemDir_user'])
print('+ archiveSystemDir_out:', job_dict_all['archiveSystemDir_out'])
JobInfoKeys = ['','uuid','name','','status','remoteOutcome','condition','lastMessage','','execSystemId','execSystemExecDir','execSystemOutputDir','','appId','appVersion','','tenant','trackingId','createdby','created','description','','execSystemId','execSystemLogicalQueue','nodeCount','coresPerNode','maxMinutes','memoryMB']
# print('\n-- Additional Relevant Job Metadata --')
print('+ ++++++++++++++++++++++++')
print('+ +++++ Additional Relevant Job Metadata')
print('+ ++++++++++++++++++++++++')
for thisKey in JobInfoKeys:
if thisKey in job_dict_all.keys():
thisValue = job_dict_all[thisKey]
# myJobTapisData[thisKey] = thisValue
print(f'+ - {thisKey}: {thisValue}')
else:
print('+ ----------------------')
print('+ ++++++++++++++++++++++++')
if 'fileInputs' in job_dict_all.keys():
this_out = widgets.Output()
this_accordion = widgets.Accordion(children=[this_out])
this_accordion.set_title(0, f'fileInputs')
# this_accordion.selected_index = 0
with metadata_out:
display(this_accordion)
with this_out:
print('')
print('#'*32)
print('### fileInputs')
print('#'*32)
fileInputsList = json.loads(job_dict_all['fileInputs'])
for thisLine in fileInputsList:
print('# ' + '+'*30)
for thisKey,thisKeyVal in thisLine.items():
print(f'# + {thisKey} = {thisKeyVal}')
print('# ' + '+'*30)
print('#'*32)
if 'parameterSet' in job_dict_all.keys():
this_out = widgets.Output()
this_accordion = widgets.Accordion(children=[this_out])
this_accordion.set_title(0, f'parameterSet')
# this_accordion.selected_index = 0
with metadata_out:
display(this_accordion)
with this_out:
print('')
print('#'*32)
print('### parameterSet')
print('#'*32)
parameterSetDict = json.loads(job_dict_all['parameterSet'])
for thisLineKey,thisLineValues in parameterSetDict.items():
print('#')
print('# ' + '+'*30)
print(f'# ++ {thisLineKey} ')
print('# ' + '+'*30)
if isinstance(thisLineValues, list):
for thisLine in thisLineValues:
print('# ' + '+ ' + '-'*28)
if isinstance(thisLine, dict):
for thisKey,thisVal in thisLine.items():
if thisVal != None:
print(f'# + - {thisKey} : {thisVal}')
else:
print('####################not dict',thisLine)
print('# ' + '+ ' + '-'*28)
elif isinstance(thisLineValues, dict):
for thisKey,thisVal in thisLineValues.items():
if thisVal != None:
print(f'# + {thisKey} : {thisVal}')
else:
print('not list nor dict',thisLine)
print('# ' + '+'*30)
print('#'*32)
return job_dict_all
JobMetadata = OpsUtils.get_tapis_job_metadata(t,jobUuid)
archiveSystemDir_out = JobMetadata['archiveSystemDir_out']
# check that it exists:
print('path exists:',os.path.exists(archiveSystemDir_out))
path exists: True
Visualize Data#
this is the same process as what we had done when we presented the web-portal submit
4. get base path for output data from posted path:#
Different systems in DesignSafe have different root paths…(bummer, yah)
basePath = archiveSystemDir_out
5. Plot some analysis results#
for any of the above analyses
import matplotlib.pyplot as plt
import numpy
#pick any case
dataDir = f'{basePath}/DataTCLmp'
Lcol = 300
print('dataDir',dataDir)
# list some files:
os.system(f'ls {dataDir}/*Lcol{Lcol}.out')
dataDir /home/jupyter/MyData/tapis-jobs-archive/2025-05-07Z/opensees-mp-s3-latest_2025-05-07T22:13:08-4dfa35e1-15cd-48fd-a090-f348544dee1f-007/inputDirectory/DataTCLmp
/home/jupyter/MyData/tapis-jobs-archive/2025-05-07Z/opensees-mp-s3-latest_2025-05-07T22:13:08-4dfa35e1-15cd-48fd-a090-f348544dee1f-007/inputDirectory/DataTCLmp/DBase_Lcol300.out
/home/jupyter/MyData/tapis-jobs-archive/2025-05-07Z/opensees-mp-s3-latest_2025-05-07T22:13:08-4dfa35e1-15cd-48fd-a090-f348544dee1f-007/inputDirectory/DataTCLmp/DCol_Lcol300.out
/home/jupyter/MyData/tapis-jobs-archive/2025-05-07Z/opensees-mp-s3-latest_2025-05-07T22:13:08-4dfa35e1-15cd-48fd-a090-f348544dee1f-007/inputDirectory/DataTCLmp/DFree_Lcol300.out
/home/jupyter/MyData/tapis-jobs-archive/2025-05-07Z/opensees-mp-s3-latest_2025-05-07T22:13:08-4dfa35e1-15cd-48fd-a090-f348544dee1f-007/inputDirectory/DataTCLmp/FCol_Lcol300.out
/home/jupyter/MyData/tapis-jobs-archive/2025-05-07Z/opensees-mp-s3-latest_2025-05-07T22:13:08-4dfa35e1-15cd-48fd-a090-f348544dee1f-007/inputDirectory/DataTCLmp/RBase_Lcol300.out
0
plt.close('all')

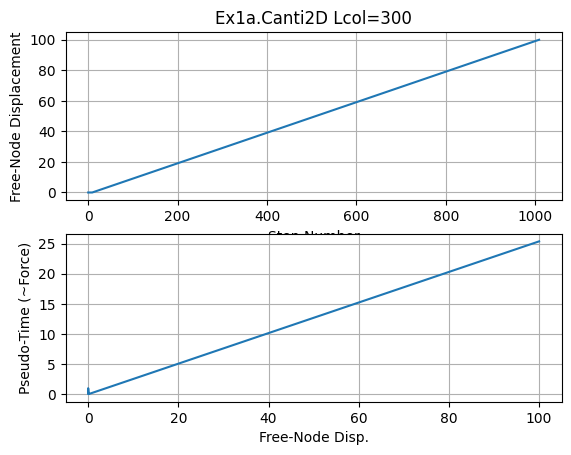

fname3o = f'DFree_Lcol{Lcol}.out'
fname3 = f'{dataDir}/{fname3o}'
print(fname3)
dataDFree = numpy.loadtxt(fname3)
plt.subplot(211)
plt.title(f'Ex1a.Canti2D Lcol={Lcol}')
plt.grid(True)
plt.plot(dataDFree[:,1])
plt.xlabel('Step Number')
plt.ylabel('Free-Node Displacement')
plt.subplot(212)
plt.grid(True)
plt.plot(dataDFree[:,1],dataDFree[:,0])
plt.xlabel('Free-Node Disp.')
plt.ylabel('Pseudo-Time (~Force)')
plt.savefig(f'{dataDir}/Response.jpg')
plt.show()
print(f'plot saved to {dataDir}/Response_Lcol{Lcol}.jpg')
print('End of Run: Ex1a.Canti2D.Push.py.ipynb')
/home/jupyter/MyData/tapis-jobs-archive/2025-05-07Z/opensees-mp-s3-latest_2025-05-07T22:13:08-4dfa35e1-15cd-48fd-a090-f348544dee1f-007/inputDirectory/DataTCLmp/DFree_Lcol300.out
plot saved to /home/jupyter/MyData/tapis-jobs-archive/2025-05-07Z/opensees-mp-s3-latest_2025-05-07T22:13:08-4dfa35e1-15cd-48fd-a090-f348544dee1f-007/inputDirectory/DataTCLmp/Response_Lcol300.jpg
End of Run: Ex1a.Canti2D.Push.py.ipynb
print('Done!')
Done!
